Fanless DIN Rail Box PC with Intel® Atom® E3900 Series & Pentium® / Celeron® N-Series Processors

Compact DIN Rail Mount Design for Rugged Environments

KBox E-410-APL is enclosed within a compact sealed aluminum housing based on passive cooling techniques. The design can reduce dust ingress and makes the box PC ideal for a range of harsh environments subject to dust, sand or other airborne particulate. With wide ranging power input support from DC 15 V to 35 V, it is capable of surviving unstable or fluctuating power supply as well. The DIN-rail mount design with all I/O interfaces accessible from the front not only makes easy the installation and maintenance but also saves precious space in the control cabinet.

Power-saving PC with Flexible Networking Options

Powered by Intel® Atom® E3900 Series & Pentium® / Celeron® N-Series SoC processors, KBox E-410-APL is characterized by both high performance capabilities and a low power consumption of up to 12 W TDP. Besides dual GbE LAN ports for Ethernet redundancy to ensure maximum network uptime, the box PC is equipped with an mPCIe socket and an M.2 Key B socket for WLAN, Bluetooth and / or WWAN wireless expansion, providing flexible networking options to meet different network environments.

Flexible Communication Port Configuration

KBox E-410-APL provides flexible communication port configuration, including RS232/422/485, RS232, CAN Bus and DIO, among four DB9 connectors located on the front I/O panel. Four configurations options are available and users can choose an appropriate combination depending on communication scheme in applications.

The list below summarizes the features and specifications of KBox e-410-APL.

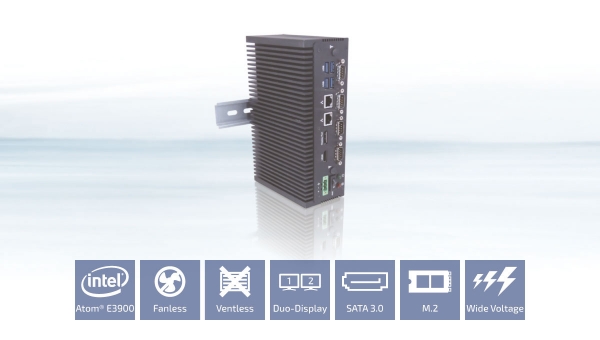

Features & Specifications

• Compact Design for Rugged Environments
  • Compact sealed aluminum housing with passive cooling design
  • Wide ranging power input: DC 15 V ~ 35 V
• Power-saving Platform
  • Intel® Atom® E3900 Series & Pentium® / Celeron® N-Series SoC processors
  • 2x DDR3L SO-DIMM up to 8 GByte memory support
  • 1x 2.5" SATA 3.0 SSD and / or 1x M.2 SSD (Key B) support
• Flexible Networking Options
  • 2x GbE LAN for Ethernet redundancy support
  • 1x mPCIe for WLAN / Bluetooth / WWAN expansion
  • 1x M.2 Key B for WWAN / SSD expansion
• Flexible DB9 Communication Port Configuration
  • Configuration 1: 2x RS232/422/485
  • Configuration 2: 2x RS232/422/485 + 2x CAN Bus
  • Configuration 3: 2x RS232/422/485 + 2x RS232
  • Configuration 4: 2x RS232/422/485 + 1x RS232 + 1x DIO
• Flexible Mounting Options
  • Vertical DIN-rail mount
  • Horizontal DIN-rail mount
  • VESA mount
• Other I/O Interfaces
  • 1x DP, 1x HDMI for dual display support
  • 4x USB 3.0 for USB device connection

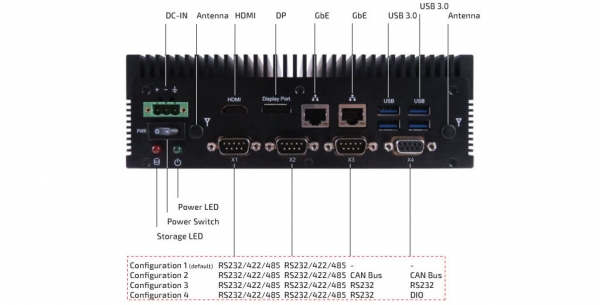

Front I/O Ports

Click here for more information about KBox E-410-APL or contact your account manager for any industrial application project specification.
